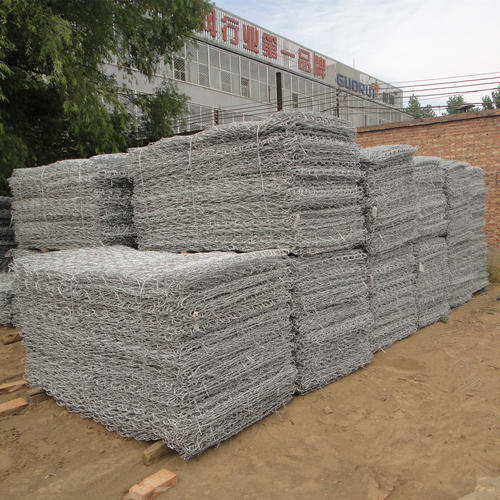

GABION MATTRESS
Specifications :
| Hole Shape | Hexagonal |
| Mesh Size | 60 mm x 80 mm |
| Length | 3 - 6 m |
| Width | 2 - 3 m |
| Height | 0.15 - 0.30 m |
| Partition Size | Up to 1 m |
| Zinc Coated Wire Diameter: (mm) | Remarks | ||||
| Only Zn Coated | Only Zn Coated | ||||
| Dia. | Tolerance | Dia. | Tolerance | ||
| Mesh Wire in Diameter (mm) | 2.7 | (+/- 0.07) | 2.2 | (+/- 0.08) | IS 16014:2012 |
| Edge/Selvedge Wire in diameter (mm) | 3.4 | (+/- 0.09) | 2.7 | (+/- 0.10) | |
| Lacing Wire in diameter (mm) | 2.2 | (+/- 0.06) | 2.2 | (+/- 0.06) | |
| PVC Coating thickness (mm) | |||||
| Dia. | Tolerance | Dia. | Tolerance | IS 16014:2012/ASTM - A 975 | |
| Mesh Wire in Diameter (mm) | 2.7 | Max 0.50mm Min 0.38mm | 2.2 | Max 0.50mm Min 0.38mm | |
| Edge/Selvedge Wire in diameter (mm) | 3.4 | Max 0.50mm Min 0.38mm | 2.7 | Max 0.50mm Min 0.38mm | |
| Lacing Wire in diameter (mm) | 2.2 | Max 0.50mm Min 0.38mm | 2 | ||
